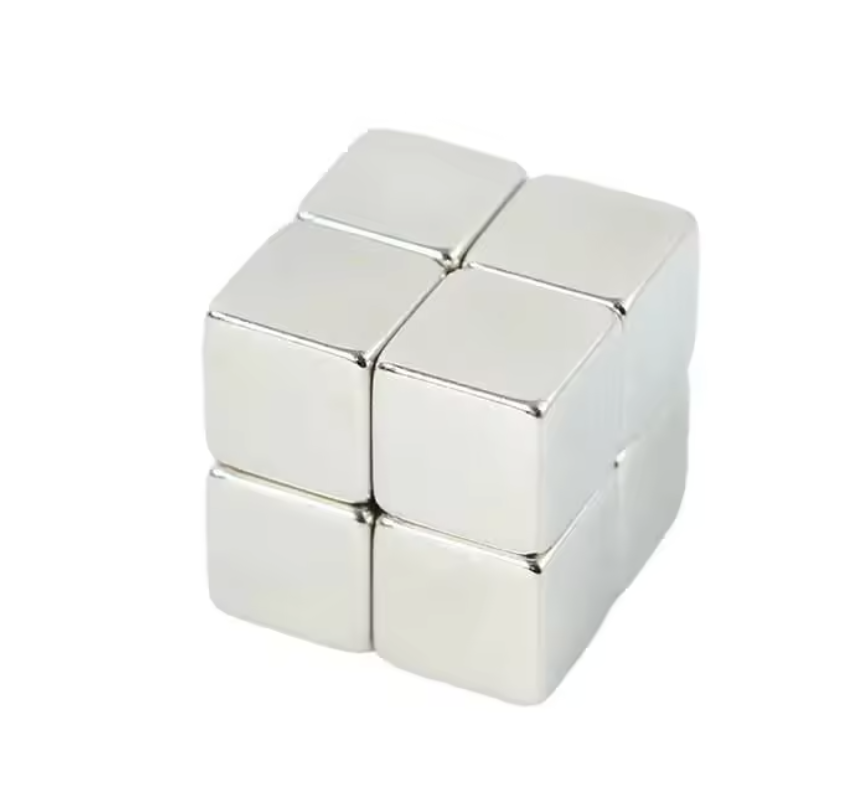

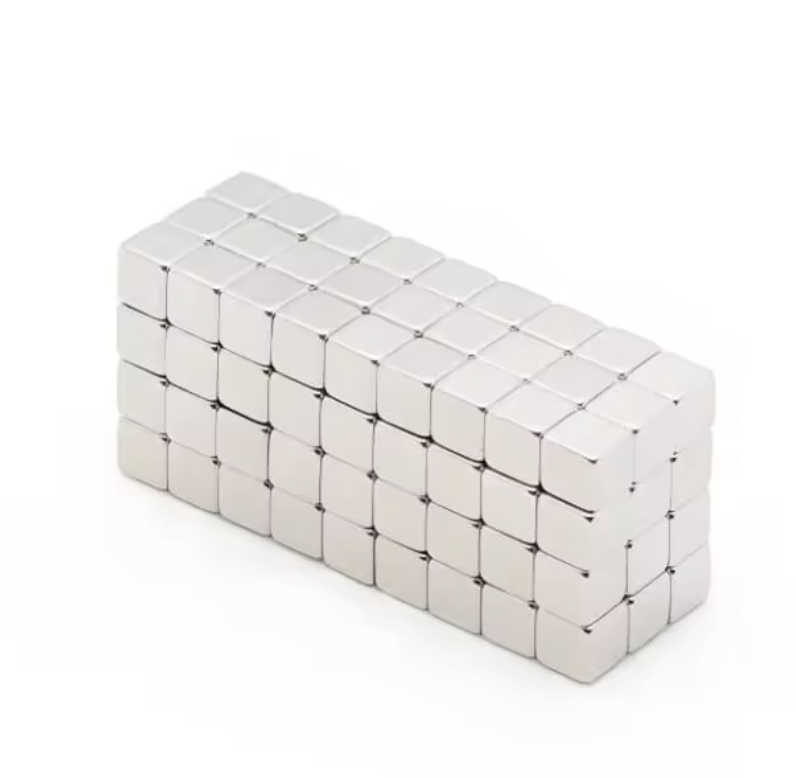

Precision Engineered Cube NdFeB Magnets
Uncompromising Strength. Perfect Symmetry. The Industry Standard for N52 Neodymium Cubes.
Why Symmetrical Cubes for Industrial Design?
Our cube magnets are manufactured with isotropic pressing and vacuum sintering to ensure a perfectly uniform magnetic field on all six faces, making them ideal for modular assembly and sensor triggering.
High Magnetic Flux
Available in grades from N35 to N52. Our cubes deliver maximum pull force for compact spaces in aerospace and robotics.
Dimensional Accuracy
Tight tolerances within ±0.05mm allow for seamless integration into precision housings and automated assembly lines.
Versatile Coating
Triple-layer Ni-Cu-Ni plating provides a smooth, metallic finish and superior resistance to corrosion in industrial environments.
Optimized for Versatile Application
From magnetic switches to high-efficiency motor rotors, our NdFeB cubes are the preferred choice for engineers requiring stable performance under stress.
| Technical Parameter | Standard Specification |
|---|---|
| Material Grade | Sintered NdFeB (N, M, H, SH series) |
| Size Range | 2mm x 2mm x 2mm up to 50mm x 50mm x 50mm |
| Remanence (Br) | 12.1 KGs – 14.8 KGs (depending on grade) |
| Max Working Temp | 80°C to 150°C (High-temp grades available) |
| Magnetization | Oriented through thickness (Axis of symmetry) |
